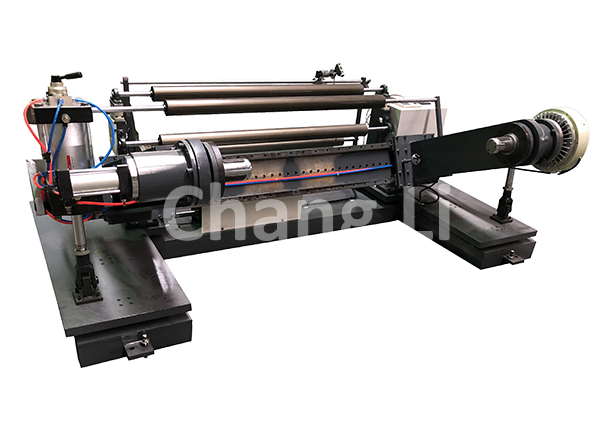

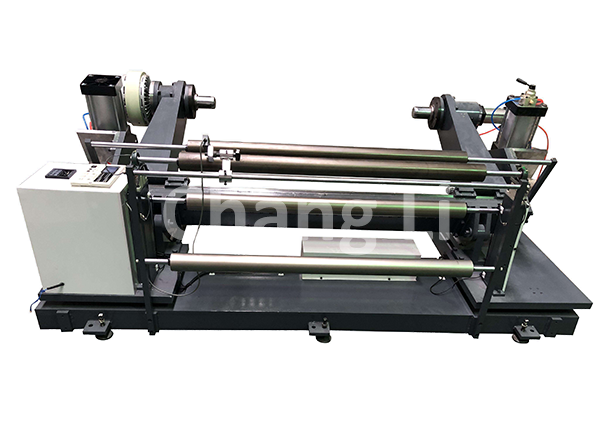

無軸放料架
發布日期:[2019-06-05] 點擊率:

用途:
該型放料架適合於無行車車間,裝載卷筒紙張、塑料薄膜,皮革,無紡布等重型卷筒材料
use:
This type of rack is suitable for non-travel workshops, loading heavy-duty reel materials such as web, plastic film, leather, non-woven fabric, etc.
特點:
放卷采用無軸裝卸料,氣動鎖緊,手動式調寬窄,水冷式磁粉製動器,料卷氣動升降,裝卸料方便、效率高。由張力傳感器實現自動張力控製。
Features:
The unwinding adopts shaftless loading and unloading, pneumatic locking, manual width adjustment, water-cooled magnetic powder brake, pneumatic lifting of material roll, convenient loading and unloading, and high efficiency. Automatic tension control is achieved by a tension sensor.
(可選購液壓上料及電動調寬窄)
(Optional hydraulic loading and electric width adjustment)
主要技術參數:Main Technical Parameters
型號 Model | 1300 | 2000 |
原料寬度MAX. Width of raw material | 1300mm | 2000mm |
放卷直徑Max.parent Web Diameter | Φ1400mm | Φ1400mm |
重量 Machine Weight | 2300kg | 3500kg |
外形尺寸 Overall Dimensions | 2650×1300×800mm | 3050×1300×800mm |
可根據產品要求 訂製設備。
Can be made according to the product requires special equipment.
