主要技術參數：Main Technical Parameters

可根據產品要求 訂製設備。

Can be made according to the product requires special equipment.

說明及特點:

1、該型分切機適合於分切PE、PP、PET,PVC等塑料薄膜，複合膜，

膜，彩印膜、卷筒紙等。是薄膜、薄片二次加工以及彩印包裝企業的理想機型。

2、整機由PLC集中控製（三矢量電機）並采用觸摸屏人機界麵對整機進行集中操作。

3、放卷采用氣動刹車製動器，由PLC自動計算卷徑實現自動張力控製。

4、牽引控製由一台矢量變頻電機驅動，實現恒線速度控製，並隔斷收放卷張力之間的相互影響。

5、收卷軸采用氣漲軸收卷由二台矢量變頻電機獨立驅動，收卷張力控製，根據收卷直徑，分切厚度，設定張力等參數，由PLC運算實現自動張力遞增。（可選滑差氣漲軸）

6、收卷軸上下壓輥離合采用氣動裝置，壓力大小通過調壓閥控製。

7、放卷用無軸裝卸料，氣動鎖緊，電動調寬窄，料卷氣動升降，裝卸料方便、效率高。

8、放卷EPC糾編裝置可準確控製端麵精度。

9、分切采用直刀分切裝置，端麵整齊，有邊廢料風送。（紙張需購置圓刀分切裝置）

10、整機由同步帶、同步輪為傳動方式，執行與鎖緊采用氣動方式

11、牽引導輥：靜平衡鋁合金導輥，表麵硬化處理

12、係統具有啟動緩衝、停車防鬆、計米定長，定速、卷徑運算等分切功能。

13、係統具有完善的機、電、氣一體化設計，並采用完備的防護措施。

Description and characteristics:

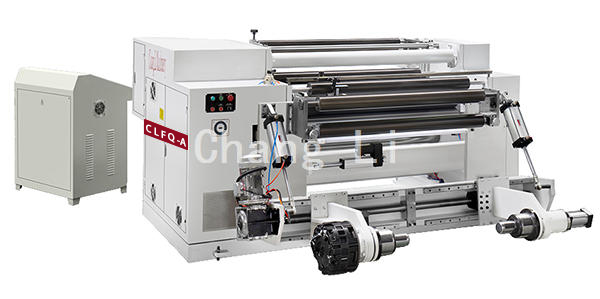

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film, web, etc. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

3. The unwinding adopts pneumatic brake brake, and the automatic tension control is realized by PLC automatically calculating the winding diameter.

4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

6. The upper and lower pressure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regulating valve.

7. Unwinding with shaftless loading and unloading material, pneumatic locking, narrow electric width adjustment, pneumatic lifting of material roll, convenient loading and unloading, high efficiency.

8. The unwinding EPC correction device can accurately control the end face precision.

9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
